Secondary sealant
Thiover is two-component polysulfide sealant of Thiokol series designed specially for application in the production of multiple glass panes. The sealant Thiover is manufactured in different packages depending on the method of its application (manual, with the use of equipment). The sealant Thiover does not contain the solvents and can be used for both single-stage and two-stage method of sealing.
Technical characteristics
Color |
|
| Component A (base): |
Beige |
| Component B (catalyst): |
Black |
| Mixture (A+B): |
Anthracite |
| Mixture ratio |
|
| By volume: |
100:10 |
| By mass: |
100:9.5 |
| Handling time |
40-90 min under standard conditions. Depends on environmental conditions. |
| Curing time |
Approximately 2-5 h depending on handling time |
| Adhesion |
High with respect to glass, aluminum, stainless or galvanized steel. Strain of break-off from glass with the sealant crippling: 110 N/25mm.
The sealed surface should be clean, dry and degreased. |
Physico-chemical characteristics
Viscosity (25°С) |
DIN 53019 |
| Component А (basic) |
|
| High viscosity |
730±30 (11а*с) |
| Middle viscosity |
630130 (Па*с) |
| Low viscosity |
530+30 (Па*с) |
| Component В (catalyst) |
180+20 (Pa*с) |
| Density (25°С) |
DIN 53217 |
| Component А (basic) |
1.77 (g/cm ) |
| Component В (catalyst) |
1,69 (g/cm3) |
| Final Shore hardness А |
minimum 50 units DIN 53505 |
| Vapor permeability |
6.42 (g/m2/day) DIN 5611 |
| Breaking elongation |
approx. 50% UNI10593/4 |
| Breaking strength |
0.90 (N/mm2) UNI10593/4 |
| Storage: |
9 months in the original containers, in dry ventilated spaces at temperature of +10° - +30°С |
| Package: |
210 l (191+19) |

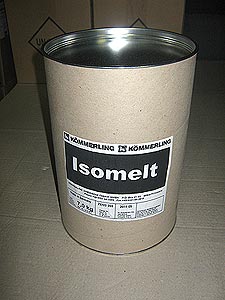

Isomelt is a solvent-free single-component sealant with very small index of vapor permeability for the secondary sealing of multiple glass panes. High adhesion with glass, aluminum, galvanized and stainless steel.
| Base |
Synthetic rubber, without solvent |
| Color mixture |
Black |
| Consistency |
Solid mass |
| Density |
1.17kg / dm3 |
| Vapor permeability |
0.15 g / m2 day |
Technical characteristics
| Surface treatment |
Surfaces on which a sealant is applied should be clean, dry, free of dust and grease |
| Application |
Sealant Isomelt is supplied to be ready for use.
Treatment is carried out at temperature of + 160°С to +180°С. |
| Storage |
Sealant storage time is minimum 12 months since manufacture at temperature of 0°С to +50°С |
| Package |
Cylinders, 7kg |
 Stiz 20
Two-component polysulfide (Thiokol) sealant. Used for sealing of the second contour of the multiple glass panes in case of manual assembly. Characterized by high adhesion with respect to glass, aluminium, ferrous metals. Resistant to the UV-radiation, weather impacts, temperature effects.
Peculiarities:
• Optimized for manual application.
• Designed for application in the composition of glued multiple glass pane in all climatic zones of RF.
• Keeps elasticity when using under conditions of low temperatures.
• Enables to vary the cure time without changing properties.
• Keeps the high adhesion under conditions of high humidity.
• Contains no solvents.
Technical characteristics
| Color |
black |
| Consistence |
thixotropic paste |
| Base |
polysulfide |
| Cure |
curing under action of cross-linking agent |
| Curing time before hardness |
40 (Shore А) 3 - 6 hours (at +20°С), with fall of temperature, curing rime increases |
| Vital capacity |
60 min (at +20°С), increase with fall of temperature |
| Shrinkage |
absent |
| Density of component А |
1660…1670 kg/m3 |
| Density of component В |
1510…1520 kg/m3 |
| Density of sealant |
1655…1660 kg/m3 |
| Temperature range of application |
from + 5°С to + 30°С, optimum + 20°С; |
| Temperature range of operation |
from - 70°С to + 90°С; |
| Bond strength when separating from aluminium (not less than) |
11.0 kg/cm2 |
| Bond strength when separating from glass (not less than) |
11.0 kg/cm2 |
| Anticipated life in the composition of multiple glass pane |
20 years |
|
|
